I need a switch like the WS-12-250B but half the size. A 19" switch is to large to fit in my enclosures for my towers. You could make it half the size and just add a rack Mount kit in the box.
Just like a Cisco router:
WS-12-250B in half size enclosure
-
jjonsson - Associate
- Posts: 337
- Joined: Wed Nov 05, 2014 12:30 pm
- Location: Denmark
- Has thanked: 37 times
- Been thanked: 65 times
WS-12-250B in half size enclosure
Hi Chris,
I need a switch like the WS-12-250B but half the size. A 19" switch is to large to fit in my enclosures for my towers. You could make it half the size and just add a rack Mount kit in the box.
Just like a Cisco router:
I need a switch like the WS-12-250B but half the size. A 19" switch is to large to fit in my enclosures for my towers. You could make it half the size and just add a rack Mount kit in the box.
Just like a Cisco router:
-
lligetfa - Associate
- Posts: 1192
- Joined: Sun Aug 03, 2014 12:12 pm
- Location: Fort Frances Ont. Canada
- Has thanked: 307 times
- Been thanked: 382 times
Re: WS-12-250B in half size enclosure
Not that this would be heavy but for heavy gear in particular, I like the ears that have slots instead of holes. That way I can drive the bottom screws most of the way and then just "hang" it on the screws before driving them the rest of the way.
I'm not sure what Chris has in mind for small form factor but I'm sure there are a lot of folks that sized their cabinets for smaller switches that they would like to swap out.
I'm not sure what Chris has in mind for small form factor but I'm sure there are a lot of folks that sized their cabinets for smaller switches that they would like to swap out.
-
sirhc - Employee
- Posts: 7601
- Joined: Tue Apr 08, 2014 3:48 pm
- Location: Lancaster, PA
- Has thanked: 1673 times
- Been thanked: 1357 times
Re: WS-12-250B in half size enclosure
We do have an 8 port coming out VERY soon!
Almost the exact dimensions of the TS8 Pro
48VH on ports 1 and 2 so it can power 2 airFIBER units
24V and 48V on all ports
250 watt power supply which is twice the wattage of the TS8
All the same features/software as our 12 and 24 port switches except no SFP modules.
The 8 port and 12 ports will also be the first switches to offer DC power plants but we need to sell some AC units first to raise capital.

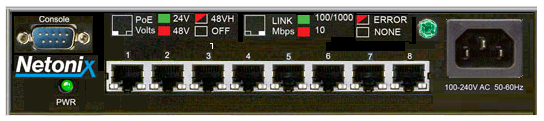

This is a crude drawing of the switch I made back at conception. it still looks very similar .
Almost the exact dimensions of the TS8 Pro
48VH on ports 1 and 2 so it can power 2 airFIBER units
24V and 48V on all ports
250 watt power supply which is twice the wattage of the TS8
All the same features/software as our 12 and 24 port switches except no SFP modules.
The 8 port and 12 ports will also be the first switches to offer DC power plants but we need to sell some AC units first to raise capital.
This is a crude drawing of the switch I made back at conception. it still looks very similar .
- WS-8-250A.png (73.96 KiB) Viewed 152078 times
Support is handled on the Forums not in Emails and PMs.
Before you ask a question use the Search function to see it has been answered before.
To do an Advanced Search click the magnifying glass in the Search Box.
To upload pictures click the Upload attachment link below the BLUE SUBMIT BUTTON.
Before you ask a question use the Search function to see it has been answered before.
To do an Advanced Search click the magnifying glass in the Search Box.
To upload pictures click the Upload attachment link below the BLUE SUBMIT BUTTON.
-
wayneorack - Experienced Member
- Posts: 129
- Joined: Thu Sep 04, 2014 12:16 pm
- Location: San Angelo, TX
- Has thanked: 188 times
- Been thanked: 64 times
-
JustJoe - Experienced Member
- Posts: 266
- Joined: Sat Aug 02, 2014 11:33 pm
- Has thanked: 94 times
- Been thanked: 59 times
Re: WS-12-250B in half size enclosure
This one would really deserve to be called the "
" , as in short for Toughar Switch!-
sirhc - Employee
- Posts: 7601
- Joined: Tue Apr 08, 2014 3:48 pm
- Location: Lancaster, PA
- Has thanked: 1673 times
- Been thanked: 1357 times
Sneak peak at our Smart 8 Port DC Version
This is a peak at our 8 port Smart DC Version
It will accept any voltage from 9-60V DC and provide 250 watts of 48 - 50V DC to run your switch and POE devices at towers sites.
Enjoy!
It will accept any voltage from 9-60V DC and provide 250 watts of 48 - 50V DC to run your switch and POE devices at towers sites.
Enjoy!
- dc8.png (32.61 KiB) Viewed 152038 times
Support is handled on the Forums not in Emails and PMs.
Before you ask a question use the Search function to see it has been answered before.
To do an Advanced Search click the magnifying glass in the Search Box.
To upload pictures click the Upload attachment link below the BLUE SUBMIT BUTTON.
Before you ask a question use the Search function to see it has been answered before.
To do an Advanced Search click the magnifying glass in the Search Box.
To upload pictures click the Upload attachment link below the BLUE SUBMIT BUTTON.
-
JimBouse - Member
- Posts: 15
- Joined: Mon Jul 14, 2014 8:40 pm
- Has thanked: 16 times
- Been thanked: 3 times
Re: Sneak peak at our Smart 8 Port DC Version
sirhc wrote:This is a peak at our 8 port Smart DC Version
It will accept any voltage from 9-60V DC and provide 250 watts of 48 - 50V DC to run your switch and POE devices at towers sites.
Enjoy!
WHOOP!
-
jjonsson - Associate
- Posts: 337
- Joined: Wed Nov 05, 2014 12:30 pm
- Location: Denmark
- Has thanked: 37 times
- Been thanked: 65 times
Re: WS-12-250B in half size enclosure
How do I pre-order ?
And when do you expect them to hit distributors ?
I will swap every single THOUGHswitch I have with one of these. Especially the possibility to power AirFibers is great news!
I'm hit really hard by the half download/full upload problem and noone at UBNT seems to care about it.
Hope a switch like this will solve the problem....
And when do you expect them to hit distributors ?
I will swap every single THOUGHswitch I have with one of these. Especially the possibility to power AirFibers is great news!
I'm hit really hard by the half download/full upload problem and noone at UBNT seems to care about it.
Hope a switch like this will solve the problem....
-
JustJoe - Experienced Member
- Posts: 266
- Joined: Sat Aug 02, 2014 11:33 pm
- Has thanked: 94 times
- Been thanked: 59 times
Re: WS-12-250B in half size enclosure
Will it have any form of POE dead short protection per port? I know most DC-DC converter designs can handle short protection, but usually that means dropping power on a few other POE power devices on the same voltage. And some of them are not happy being shorted for a day or two before you can get back to a remote tower during storm season.
What I think would be useful is solder-in (on PCB standoffs?) slow-blow fuses per port. Then once on site, either live without that port or replace it with a new "AR" switch. Sure I would violate the warranty when I got it back to the shop and soldered in a new fuse, but that's a quick and easy solder job. And cheaper/more reliable than using fuse holders for something that will see a failure maybe once in 10-20 switches.
What I think would be useful is solder-in (on PCB standoffs?) slow-blow fuses per port. Then once on site, either live without that port or replace it with a new "AR" switch. Sure I would violate the warranty when I got it back to the shop and soldered in a new fuse, but that's a quick and easy solder job. And cheaper/more reliable than using fuse holders for something that will see a failure maybe once in 10-20 switches.
