Possible SNMP issue

davidbaker
Member

Posts: 31
Joined: Thu Jan 14, 2016 7:19 pm
Location: Hermiston, OR
Has thanked: 1 time
Been thanked: 0 time

Possible SNMP issue

Mon Nov 07, 2016 9:05 pm

I posted this is another topic but it looks like we have two different issues going on.

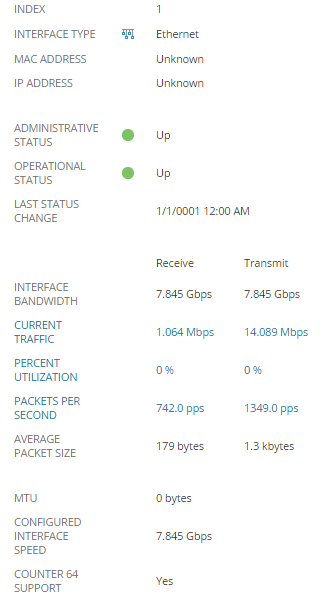

I have Solarwinds deployed and since updating to firmware 1.4.5rc7 the Netonix switches are reporting their interface speeds to be 7Gb. Then on the next poll the interface speed will change to 78Gb or some other random number. This is causing my event logs to fill up on the server because we have multiple Netonix switches.

Also another issue I noticed is that the "Last boot" date keeps changing but its actually not rebooting..

So basically I am having an issue with SNMP not reporting correctly after the firmware update.
Attachments
Last edited by davidbaker on Wed Nov 09, 2016 1:23 pm, edited 1 time in total.

User avatar
Dave
Employee
Employee

Posts: 722
Joined: Tue Apr 08, 2014 6:28 pm
Has thanked: 1 time
Been thanked: 158 times

Re: Possible SNMP issue

Mon Nov 07, 2016 9:41 pm

we are investigating this issue for you...

User avatar
Eric Stern
Employee
Employee

Posts: 532
Joined: Wed Apr 09, 2014 9:41 pm
Location: Toronto, Ontario
Has thanked: 0 time
Been thanked: 130 times

Re: Possible SNMP issue

Tue Nov 08, 2016 10:16 am

I installed Solarwinds and let it run overnight, seems to be working fine. The "Last Boot" time is wrong, but it isn't changing.



Is there anything in the switch log?

davidbaker
Member

Posts: 31
Joined: Thu Jan 14, 2016 7:19 pm
Location: Hermiston, OR
Has thanked: 1 time
Been thanked: 0 time

Re: Possible SNMP issue

Tue Nov 08, 2016 11:37 am

Nope, just a bunch of ntp client issues which was why we upgraded firmware was to see if that would correct the NTP issue. Thats a seperate issue at the moment.


Jan 7 05:18:36 system: starting ntpclient
Jan 7 05:18:48 system: starting ntpclient
Jan 7 05:18:59 system: starting ntpclient
Jan 7 05:19:10 system: starting ntpclient
Jan 7 05:19:22 system: starting ntpclient
Jan 7 05:19:33 system: starting ntpclient
Jan 7 05:19:45 system: starting ntpclient
Jan 7 05:19:56 system: starting ntpclient
Jan 7 05:20:07 system: starting ntpclient
Jan 7 05:20:18 system: starting ntpclient
Jan 7 05:20:30 system: starting ntpclient

davidbaker
Member

Posts: 31
Joined: Thu Jan 14, 2016 7:19 pm
Location: Hermiston, OR
Has thanked: 1 time
Been thanked: 0 time

Re: Possible SNMP issue

Tue Nov 08, 2016 11:45 am

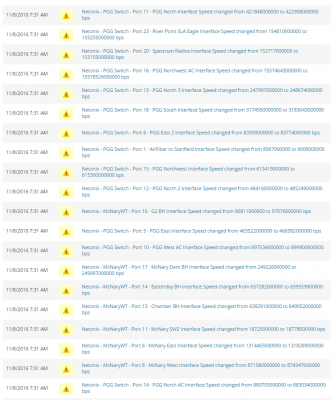

Here is some more info on what the Event logs are showing in Solarwind. The interface speeds are changing to all sorts of random numbers.
Attachments
Last edited by davidbaker on Wed Nov 09, 2016 1:22 pm, edited 2 times in total.

User avatar
sirhc
Employee
Employee

Posts: 7346
Joined: Tue Apr 08, 2014 3:48 pm
Location: Lancaster, PA
Has thanked: 1597 times
Been thanked: 1317 times

Re: Possible SNMP issue

Tue Nov 08, 2016 11:46 am

davidbaker wrote:Nope, just a bunch of ntp client issues which was why we upgraded firmware was to see if that would correct the NTP issue. Thats a seperate issue at the moment.


Jan 7 05:18:36 system: starting ntpclient
Jan 7 05:18:48 system: starting ntpclient
Jan 7 05:18:59 system: starting ntpclient
Jan 7 05:19:10 system: starting ntpclient
Jan 7 05:19:22 system: starting ntpclient
Jan 7 05:19:33 system: starting ntpclient
Jan 7 05:19:45 system: starting ntpclient
Jan 7 05:19:56 system: starting ntpclient
Jan 7 05:20:07 system: starting ntpclient
Jan 7 05:20:18 system: starting ntpclient
Jan 7 05:20:30 system: starting ntpclient


This is indicating it can not reach the NTP server or you have the NTP server mis-configured?

If the switch is located on a non rout-able IP it will not be able to reach a public NTP server and you will need to setup an internal NTP server within your network that can be reached.

Does your switch reside at a non-valid IP and what address is the switch trying to reach for NTP?
Support is handled on the Forums not in Emails and PMs.
Before you ask a question use the Search function to see it has been answered before.
To do an Advanced Search click the magnifying glass in the Search Box.
To upload pictures click the Upload attachment link below the BLUE SUBMIT BUTTON.

davidbaker
Member

Posts: 31
Joined: Thu Jan 14, 2016 7:19 pm
Location: Hermiston, OR
Has thanked: 1 time
Been thanked: 0 time

Re: Possible SNMP issue

Tue Nov 08, 2016 11:58 am

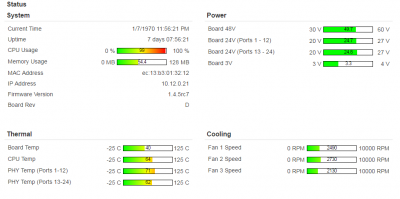

I just noticed also the CPU seems to be spiking up to 99% as well.

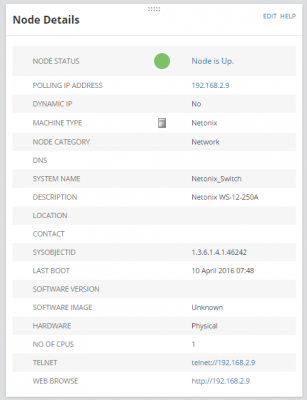

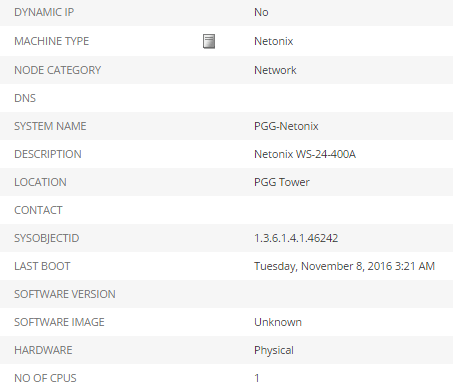

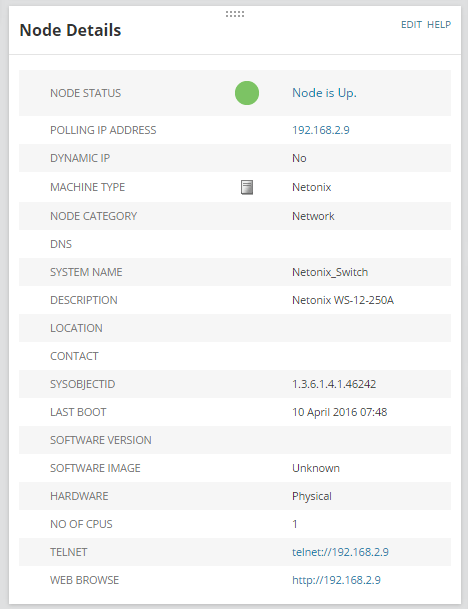

Also here is a screen cap showing last boot time that is being reported to Solarwinds but in the screen shot above you can see the system has been up for 7+ days.
Attachments
Last edited by davidbaker on Wed Nov 09, 2016 1:22 pm, edited 3 times in total.

davidbaker
Member

Posts: 31
Joined: Thu Jan 14, 2016 7:19 pm
Location: Hermiston, OR
Has thanked: 1 time
Been thanked: 0 time

Re: Possible SNMP issue

Tue Nov 08, 2016 12:05 pm

sirhc wrote:
davidbaker wrote:Nope, just a bunch of ntp client issues which was why we upgraded firmware was to see if that would correct the NTP issue. Thats a seperate issue at the moment.


Jan 7 05:18:36 system: starting ntpclient
Jan 7 05:18:48 system: starting ntpclient
Jan 7 05:18:59 system: starting ntpclient
Jan 7 05:19:10 system: starting ntpclient
Jan 7 05:19:22 system: starting ntpclient
Jan 7 05:19:33 system: starting ntpclient
Jan 7 05:19:45 system: starting ntpclient
Jan 7 05:19:56 system: starting ntpclient
Jan 7 05:20:07 system: starting ntpclient
Jan 7 05:20:18 system: starting ntpclient
Jan 7 05:20:30 system: starting ntpclient


This is indicating it can not reach the NTP server or you have the NTP server mis-configured?

If the switch is located on a non rout-able IP it will not be able to reach a public NTP server and you will need to setup an internal NTP server within your network that can be reached.

Does your switch reside at a non-valid IP and what address is the switch trying to reach for NTP?


We have our own Internal NTP Server that the switch can reach. We have 3 total Netonix switches and only 1 of them seem to be working with the NTP server. Our thoughts were maybe that because the firmware was higher on the one that appear to work that we just needed to update the firmware on all of them. Well anyways no that did not work but honestly I need to troubleshoot more on the network side before I conclued anything is wrong with the Netonix switches. I still have a few things I want to try before I need to get some help from the experts!

davidbaker
Member

Posts: 31
Joined: Thu Jan 14, 2016 7:19 pm
Location: Hermiston, OR
Has thanked: 1 time
Been thanked: 0 time

Re: Possible SNMP issue

Wed Nov 09, 2016 12:56 pm

Do you have any updates you could provide me?

User avatar
sirhc
Employee
Employee

Posts: 7346
Joined: Tue Apr 08, 2014 3:48 pm
Location: Lancaster, PA
Has thanked: 1597 times
Been thanked: 1317 times

Re: Possible SNMP issue

Wed Nov 09, 2016 1:06 pm

davidbaker wrote:Do you have any updates you could provide me?


We can not see your pictures 2 posts up.

UPLOAD the pictures to the forum with the link below the BLUE submit button.
Support is handled on the Forums not in Emails and PMs.
Before you ask a question use the Search function to see it has been answered before.
To do an Advanced Search click the magnifying glass in the Search Box.
To upload pictures click the Upload attachment link below the BLUE SUBMIT BUTTON.
