New Arrivals at our NOC

Thu Oct 01, 2015 8:43 am

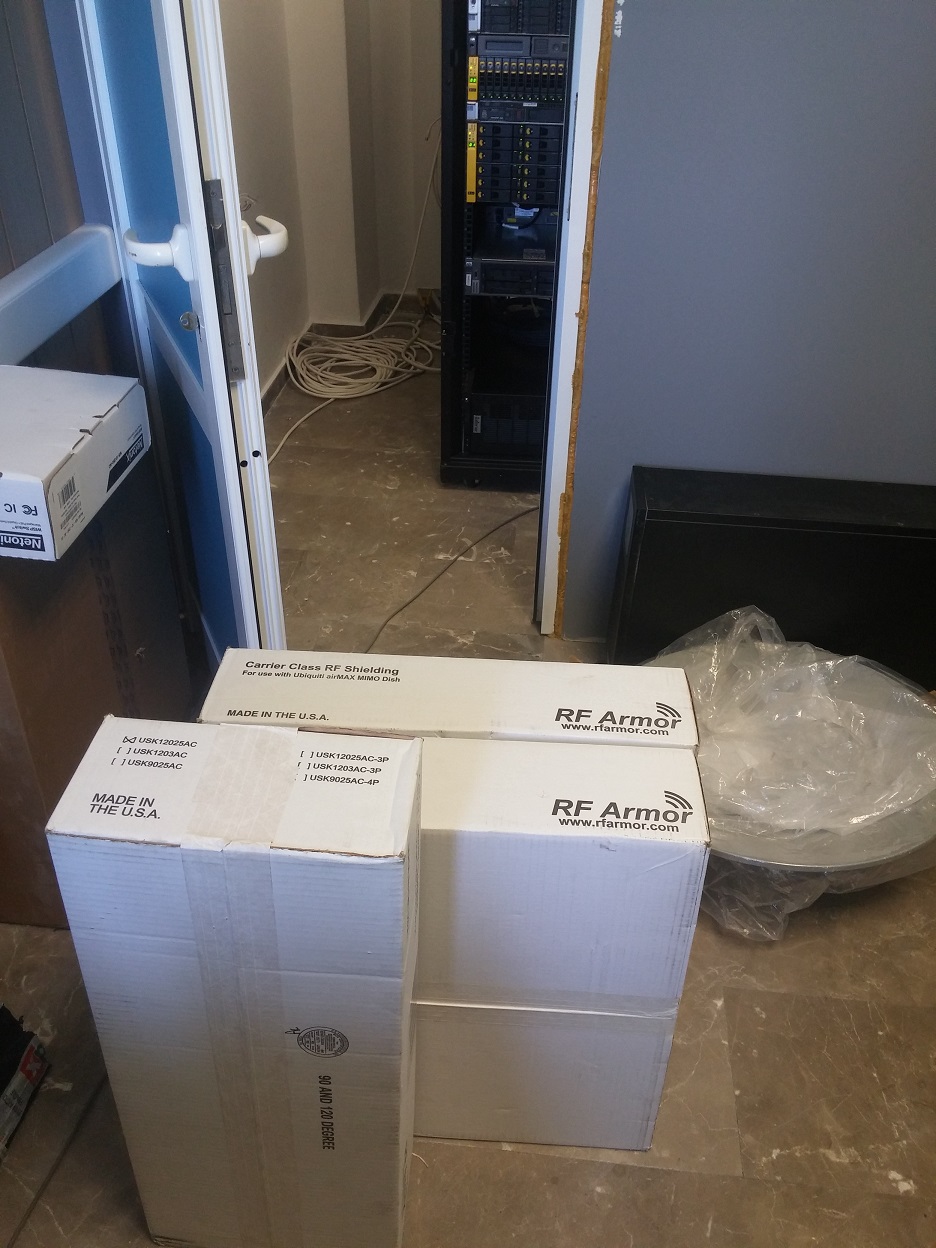

We have just got DHL package from Landatel with the following:

2x - Kit RF-Armor for PBE-5AC-500
1x - Kit RF-Armor for AM5G19



We will come back with updates on how they changed the quality of our links by providing some screenshots
of data from our monitor tool.

Thanks once again to Landatel & to Chris for the overall support and professionalism.
Mike A - www.iwisp.gr

User avatar
Mikea
Associate
Associate

Posts: 112
Joined: Fri Jun 26, 2015 6:22 am
Location: Korinthos (Greece)
Has thanked: 21 times
Been thanked: 31 times

Re: New Arrivals at our NOC

Thu Oct 01, 2015 10:22 am

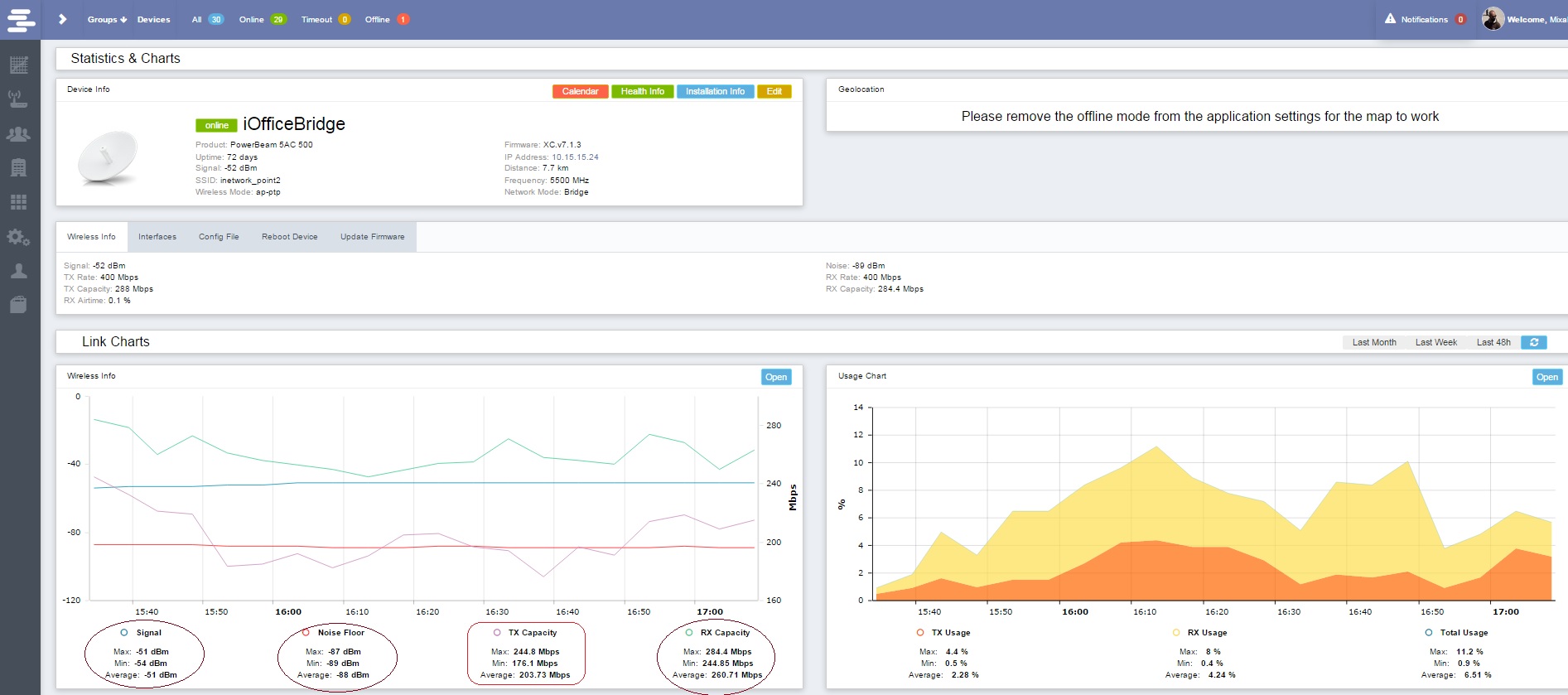

Here you can see the first results on one of the two PBE5-AC-500

Note that improvement in RX capacity in comparison to TX capacity since the RF-Armor is only applied to one of the two.
The signal from fluctuating from -55 to -53 is now rock solid -51dBm.
The Noise is reduced by -2 dBm.

I will post more when we will install the RF-Armor on the other side of the link on the mountain Tower.

Mike A - www.iwisp.gr

User avatar
Mikea
Associate
Associate

Posts: 112
Joined: Fri Jun 26, 2015 6:22 am
Location: Korinthos (Greece)
Has thanked: 21 times
Been thanked: 31 times

Re: New Arrivals at our NOC

Sun Oct 04, 2015 6:43 am

Ok we ve managed to put on the RF-Armor on one of our APs and the relusts can be seen on the following images.

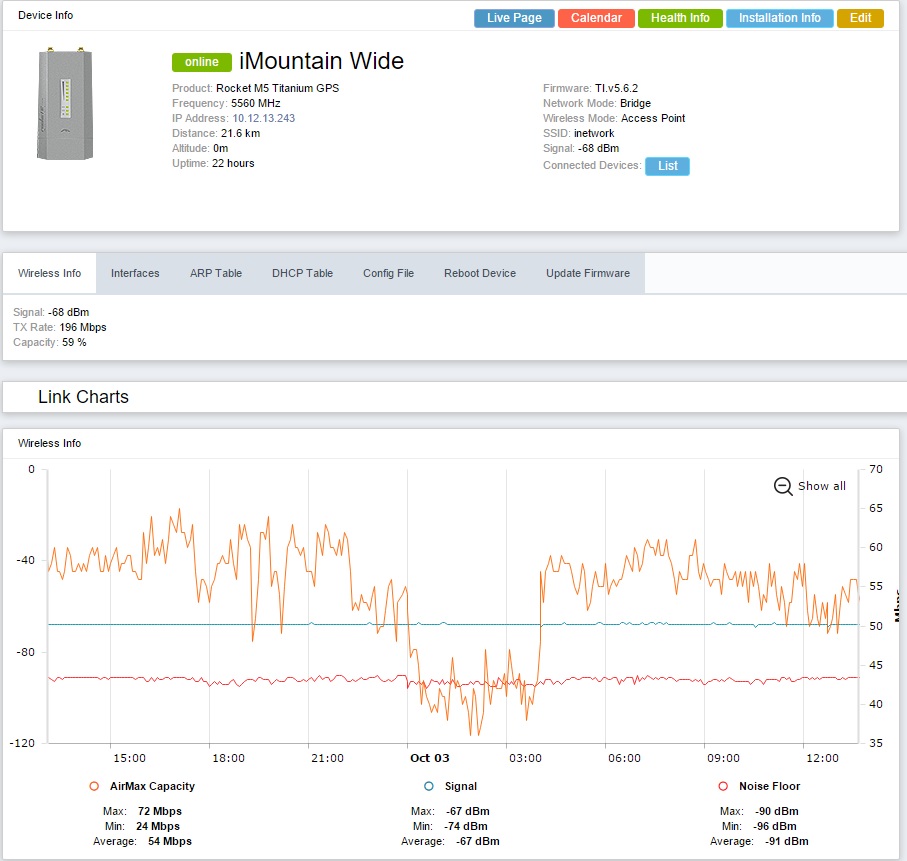

First image is wireless performance the day before RF-Armor Addon.

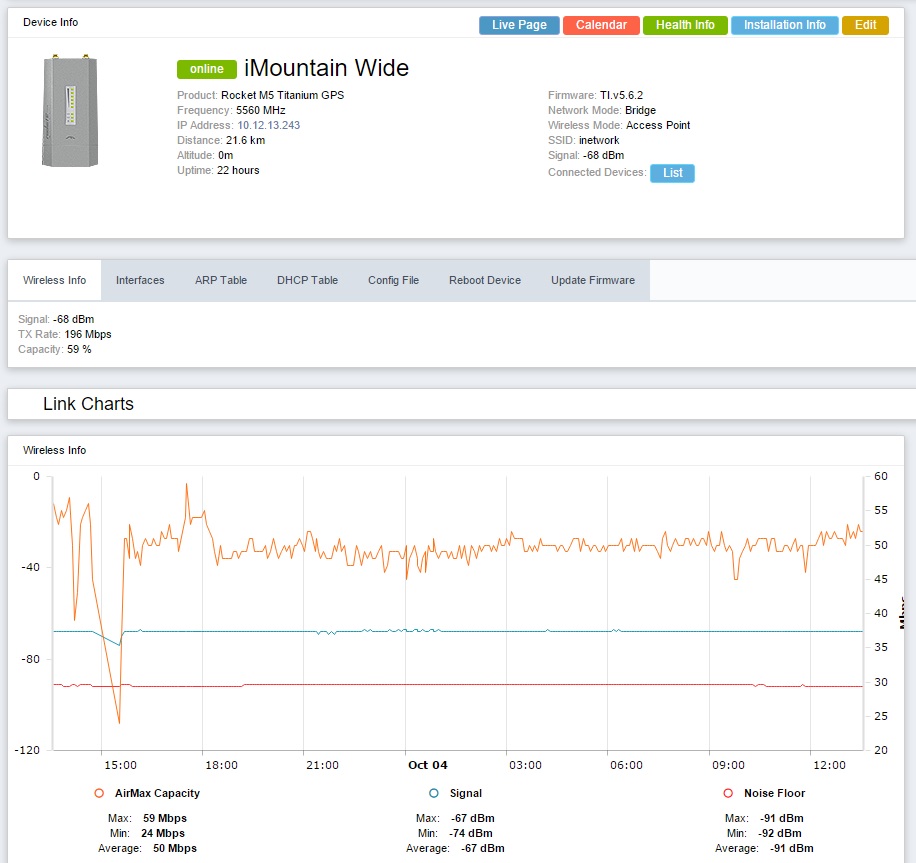

The second image is wireless performance after RF-Armor Addon.



The screenshots tell the great success of this Addon.
Mike A - www.iwisp.gr
