WS-12-250-DC - First feedback - It just works

Mon Aug 31, 2015 4:06 am

Installed our first WS-12-250-DC on Saturday following delivery to the UK earlier this week.
It just works!
This is a site where we have mains 240V power, however a few years ago decided that we needed to convert some sites to DC to ensure that they ran for many hours/days during mains power outages.
We're running a 24V DC system at this location with about 120AH, so the efficiency is working >90%, however the WS-12-250-DC is designed to operate between 9V and 60V, with the sweet spot around 24-48V.

This site had a UBNT Toughswitch 5-port whose power input had been hacked onto our batteries via some voltage regulators.
Expensive and time consuming to "hack" on to DC.
With the Netonix WS-12-250-DC, we just connect the DC terminals onto the batteries. No hacking. Simples.
We were keen to replace this UBNT TS because the uplink to it was 1 Gb and the Rocket radios were 100 M!
1 Gb to 100 Mb issues UBNT TS!!
Although this was causing 20 Mb down, 70 Mb issues for customers connecting downstream, latterly, it sorted itself out, so replacing for a Netonix would just provide reassurance.


Not a great deal is happening at this site yet, we're powering 2 x UBNT Rocket M5s base stations, we are connecting to a Site Monitor which is practically redundant now we can monitor the DC voltage from the switch Web GUI and SNMP (that will save a few £100), and a 1 Gb SFM media converter provides the uplink.
However in the next few weeks we are connecting a load of FTTP customers onto the switch so will need the ports.
As the switch only has 2 x SFP ports, we will have to use some media converters (hacked onto DC (expensive and messy), but will use the SFP for the uplink upstream to our Edgeswitch which then routes onto a Mikrotik 1100.
(We will try and replace the UBNT ES for a WS-24-400A in due course).

So in conclusion, it just works:
- No hacking things to work on DC saves time and money.
- Shows live power usage stats in Web GUI and SNMP
- Shows live DC power voltage in web GUI and SNMP sames money on purchasing things like a Site Monitor and time configuring it
- Shows efficiency of DC conversion so you can decide whether you need to change those 12V sites to 24V!
- Just works like the AC versions so no reeducation
- There's the ability to shut down PoE ports based on input voltage ensuring that the batteries last the time during really long power cuts


We are installing 1 x WS-12-250-DC later today on a 12 V battery system that will be slightly more complex (powering a UBNT Rocket AC Backhaul) as well as some Base Stations, FTTH, LACP to a local Mikrotik, and powering the Mikrotik too!
We are also installing a WS-8-250-DC on a 12 V system. Powering 2 x UBNT Rocket M5s, and an 1 Gb SMF media converter uplink. A shame the 8-port does not have SFPs.
Will make another post later.

Some screen shots of the first installed WS-12-250-DC

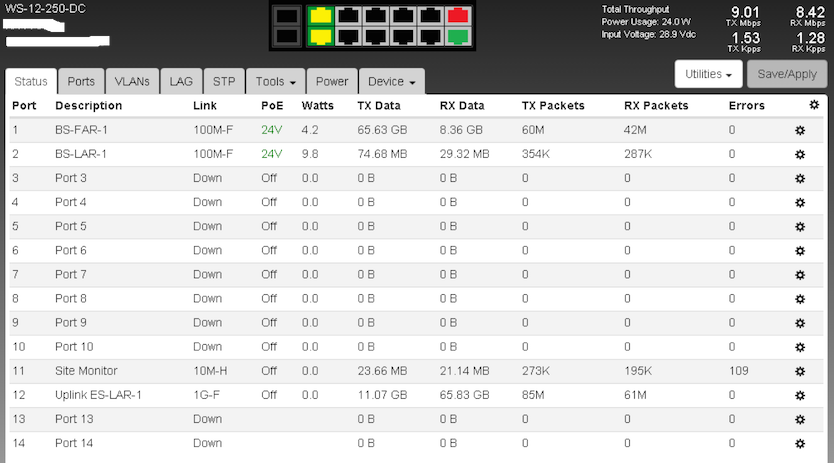

WS-12-250-DC Status Tab.png
WS-12-250-DC Status Tab
WS-12-250-DC Status Tab.png (122.06 KiB) Viewed 5199 times

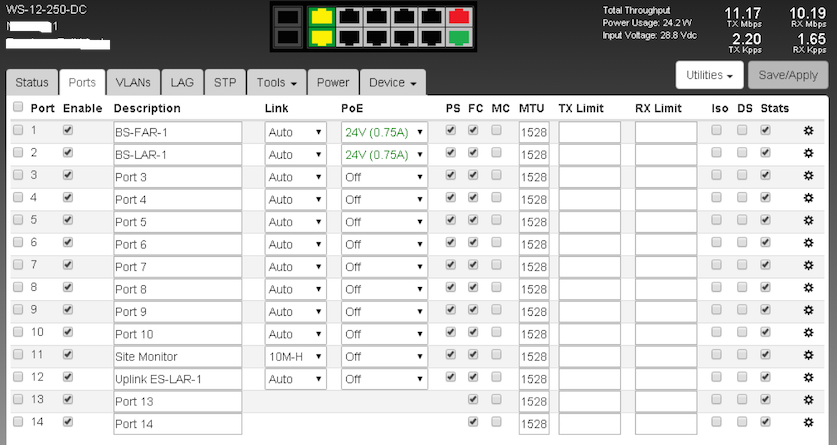

WS-12-250-DC Port Tab.png
WS-12-250-DC Port Tab
WS-12-250-DC Port Tab.png (142.31 KiB) Viewed 5199 times

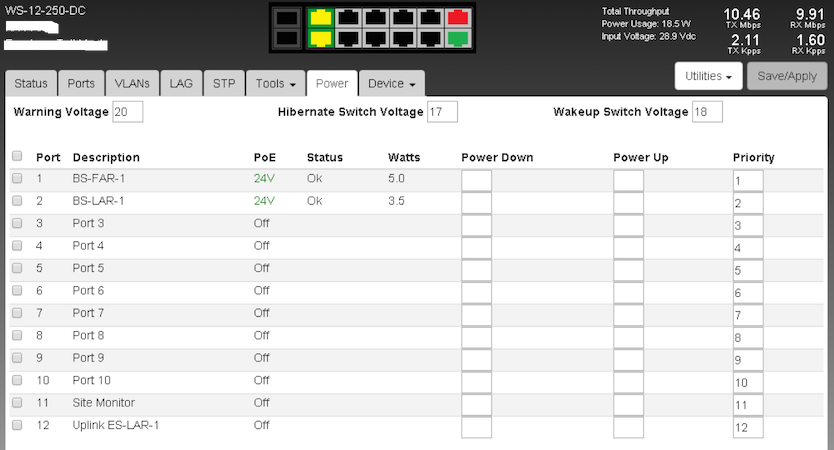

WS-12-250-DC Power Tab.png
WS-12-250-DC Power Tab
WS-12-250-DC Power Tab.png (98.63 KiB) Viewed 5199 times

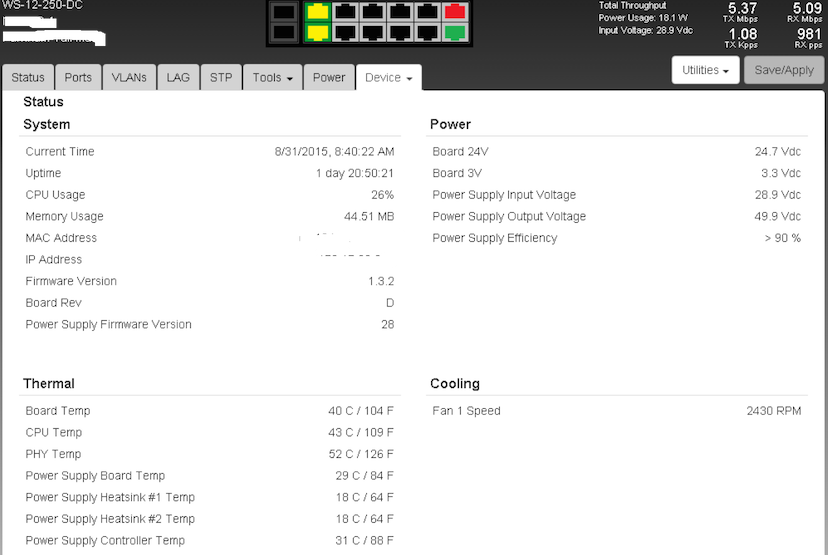

WS-12-250-DC Device Tab.png
WS-12-250-DC Device Tab
WS-12-250-DC Device Tab.png (119.67 KiB) Viewed 5199 times

User avatar
sirhc
Employee
Employee

Posts: 7003
Joined: Tue Apr 08, 2014 3:48 pm
Location: Lancaster, PA
Has thanked: 1559 times
Been thanked: 1238 times

Re: WS-12-250-DC - First feedback - It just works

Mon Aug 31, 2015 7:28 am

Thanks bmv, great write up!

Do not forget to upgrade firmware when you get a chance.
Support is handled on the Forums not in Emails and PMs.
Before you ask a question use the Search function to see it has been answered before.
To do an Advanced Search click the magnifying glass in the Search Box.
To upload pictures click the Upload attachment link below the BLUE SUBMIT BUTTON.

User avatar
bmv
Member

Posts: 30
Joined: Sun Aug 23, 2015 4:07 am
Location: Dorset/Wiltshire, UK
Has thanked: 5 times
Been thanked: 12 times

Re: WS-12-250-DC - First feedback - It just works

Tue Sep 01, 2015 10:16 am

It is on the latest! ;) (1.3.2?)

User avatar
linitx
Member

Posts: 1
Joined: Tue Sep 01, 2015 10:24 am
Location: Needham Market, UK
Has thanked: 0 time
Been thanked: 0 time

Re: WS-12-250-DC - First feedback - It just works

Wed Sep 02, 2015 6:11 am

To use media converters have a look at the MikroTik ones, they take PoE power...

http://linitx.com/product/mikrotik-fibe ... rter/14249

Hope that helps

Nick

User avatar
bmv
Member

Posts: 30
Joined: Sun Aug 23, 2015 4:07 am
Location: Dorset/Wiltshire, UK
Has thanked: 5 times
Been thanked: 12 times

Re: WS-12-250-DC - First feedback - It just works

Sat Sep 05, 2015 7:19 am

linitx wrote:To use media converters have a look at the MikroTik ones, they take PoE power...

http://linitx.com/product/mikrotik-fibe ... rter/14249

Hope that helps

Nick


We have ordered some! They are reasonably priced.
This would simplify our sites further when it comes to power.
Hopefully they are compatible with a range of SFPs.
Thanks for the tip Nick.
